Product Details

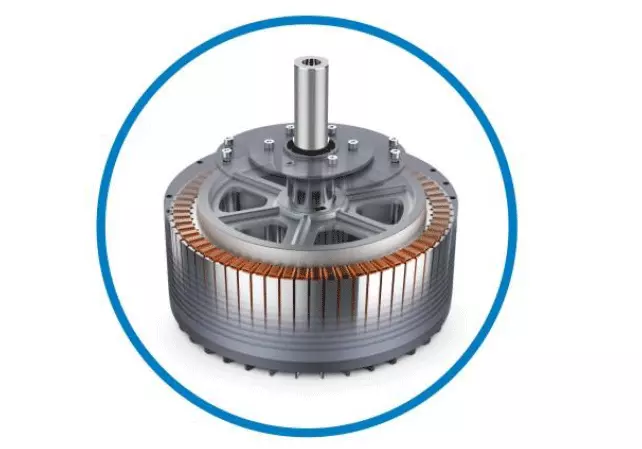

Motor
Permanent‑magnet variable‑frequency large ceiling fan features self‑developed outer‑rotor motor, multiple safety protections, aluminum lightweight design, reliable braking and lower energy consumption.

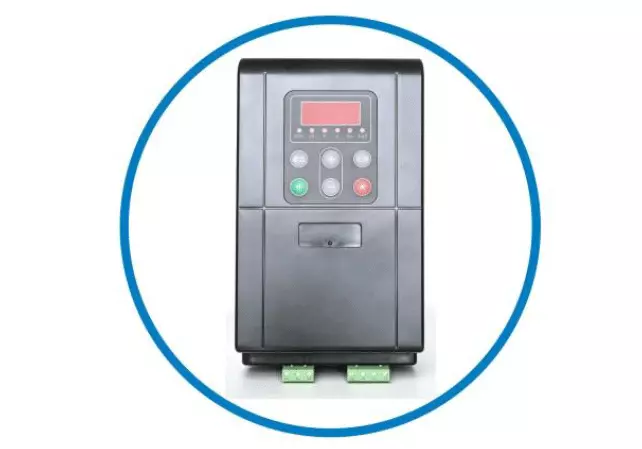

Control System
IP54 protection with VVC vector control, full‑range electrical protection, simple 4‑key operation, customizable intelligent control including WLAN, Bluetooth, 4G and PID.

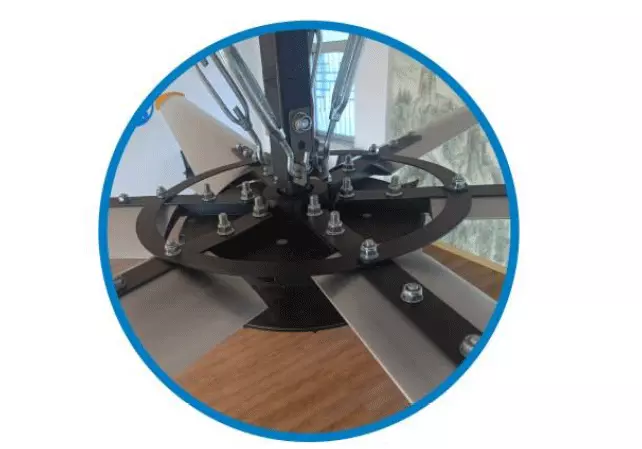

Fan Blade Connectors
Dual male‑female connection for fan blades with laser‑cut Q235B components, 10.9‑12.9 grade anti‑loosening galvanized bolts to prevent blade falling from loose screws.

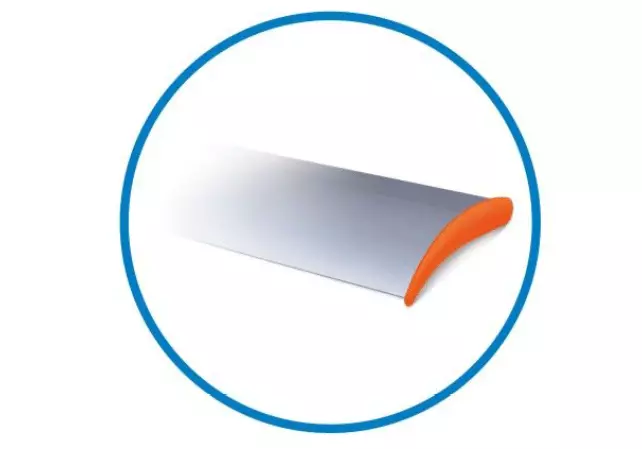

Blades
Extruded Mg‑Al alloy airfoil fan blade with inner ribs, 23mm thick, T5 bright oxidation, high strength & corrosion resistance for anti‑fracture in harsh conditions.
Parameters
| Model | Voltage | Power | Number of Blades | Blade Width | Maximum （RPM) |
Frequency （Hz) |
Airflow | Rated Current | Noise Level |
| DXDS-7.3m | 220v-380v | 1.5KW-1.6KW | 5–6 leaves | 18㎝ | 57 | 50/60 | 15000m³/min | 3.7A | ≦50 |
| DXDS-6.5m | 220v-380V | 1.5-KW | 5–6 leaves | 18㎝ | 60 | 50/60 | 14200m³/min | 3.7A | ≦50 |
| DXDS-6.0m | 220v-380v | 1.3KW | 5–6 leaves | 18㎝ | 65 | 50/60 | 13500m³/min | 3.7A | ≦50 |
| DXDS-5.5m | 220v-380v | 1.3kw | 5–6 leaves | 18㎝ | 65 | 50/60 | 13500m³/min | 3.7A | ≦50 |
| DXDS-5.5m | 220v-380v | 0.9KW | 5 leaves | 16㎝ | 70 | 50/60 | 6000m³/min | 2.9A | ≦50 |
| DXDS-5m | 220v-380v | 0.9kw | 5–6 leaves | 16㎝ | 80 | 50/60 | 5500m³/min | 2.9A | ≦50 |
| DXDS-4.5m | 220v-380v | 0.9kw | 5–6 leaves | 16㎝ | 90 | 50/60 | 5000m³/min | 2.9A | ≦50 |
| DXDS-4.5m | 220v-380v | 0.5kw | 5 leaves | 16㎝ | 80 | 50/60 | 5000m³/min | 2.9A | ≦50 |
| DXDS-4.0m | 220v | 0.5KW | 5–6 leaves | 16㎝ | 80 | 50/60 | 4000m³/min | 2.9A | ≦50 |
| DXDS-3.5m | 220v | 0.5KW | 5–6 leaves | 16㎝ | 90 | 50/60 | 4000m³/min | 2.9A | ≦50 |
| DXDS-3.0m | 220v | 0.5KW | 5–6 leaves | 16㎝ | 100 | 50/60 | 4000m³/min | 2.9A | ≦50 |
| DXDS-3.0m | 220v | 0.3KW | 5–6 leaves | 13㎝ | 100 | 50/60 | 3000m³/min | 2.8A | / |
| DXDS-2.5m | 220V | 0.3KW | 5–6 leaves | 13㎝ | 110 | 50/60 | 3000m³/min | 2.8A | / |
| DXDS-2.0m | 220v | 0.3KW | 5–6 leaves | 13㎝ | 110 | 50/60 | 3000m³/min | 2.8A | / |

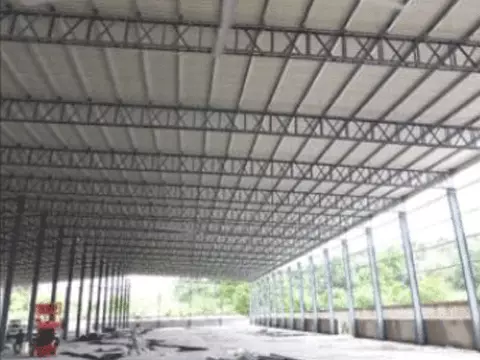

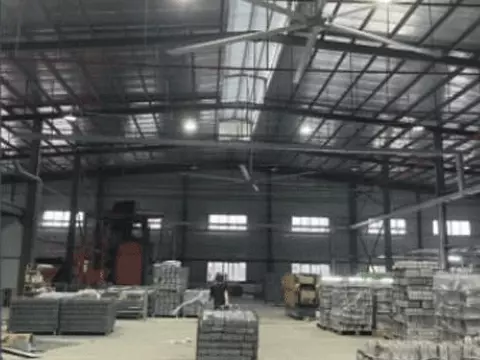

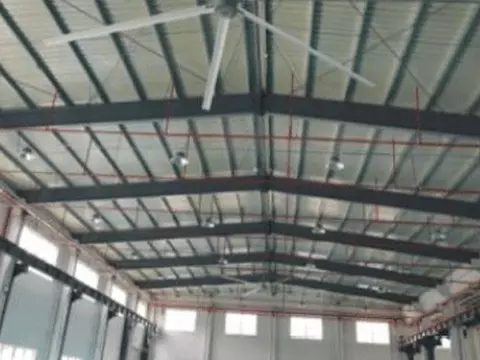

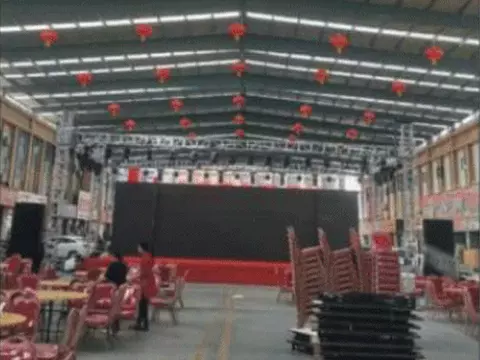

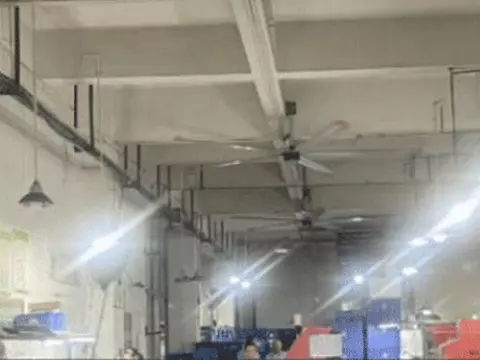

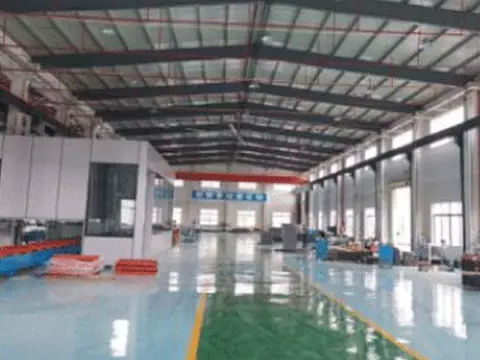

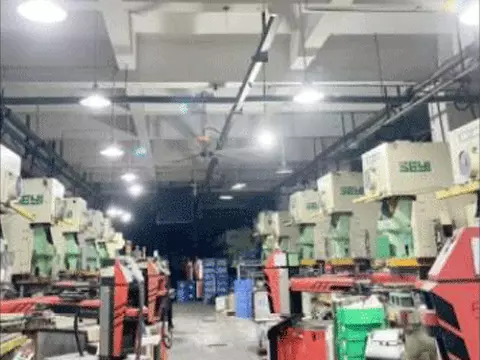

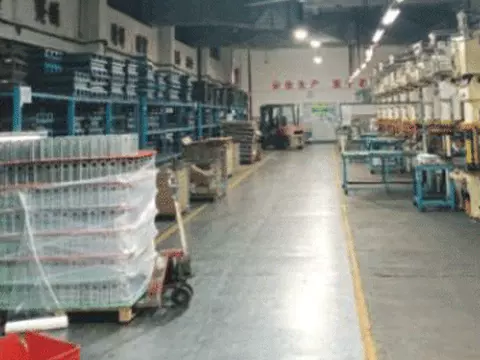

Project Case Studies
